DESCRIPTION

99,36 kWp Solar Carport Project Type 11

Static Steel Fabrication Project

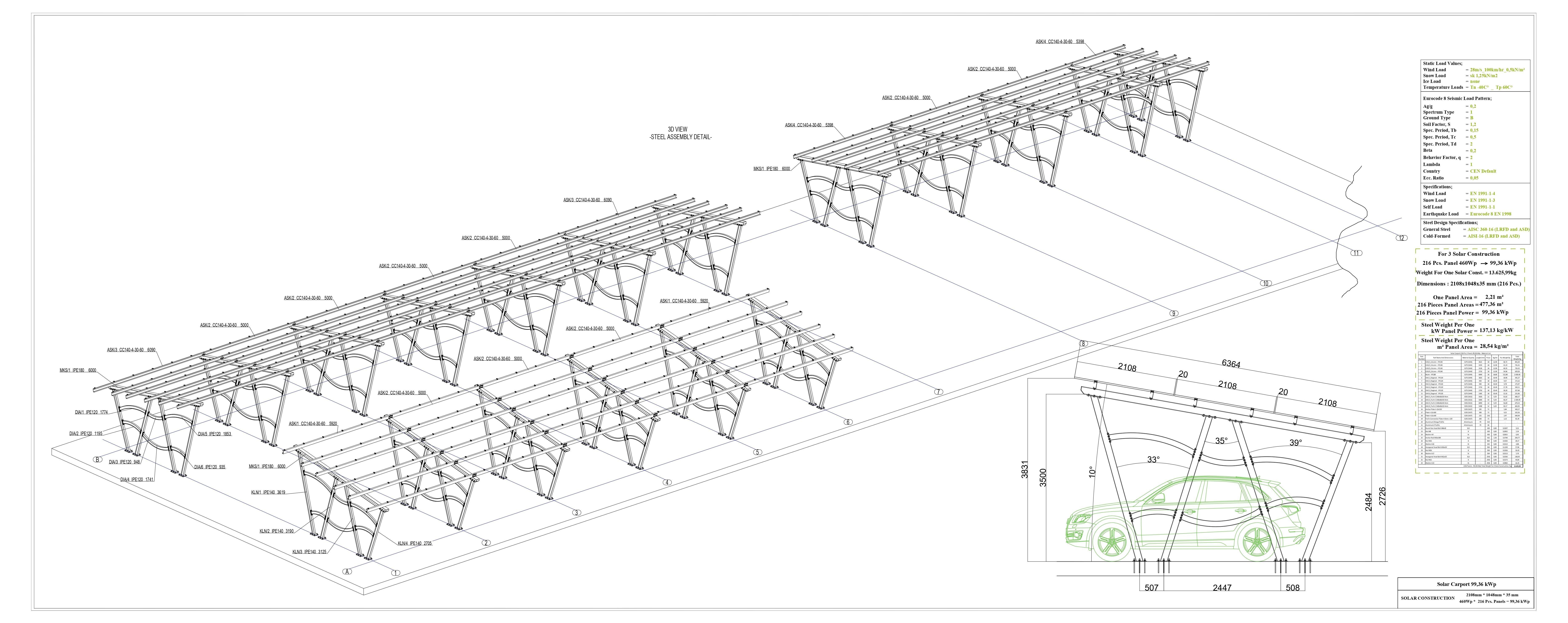

3x30 Vertical Panel Layout,

3x17 Vertical Panel Layout,

3x25 Vertical Panel Layout,

Ground Connection Type; With Anchor Plate

Panel Dimensions : 2108 x 1048 x 35 mm

Panel Power : 460Wp

1 solar carport steel construction produces 68,25 kWp power in 1 hour

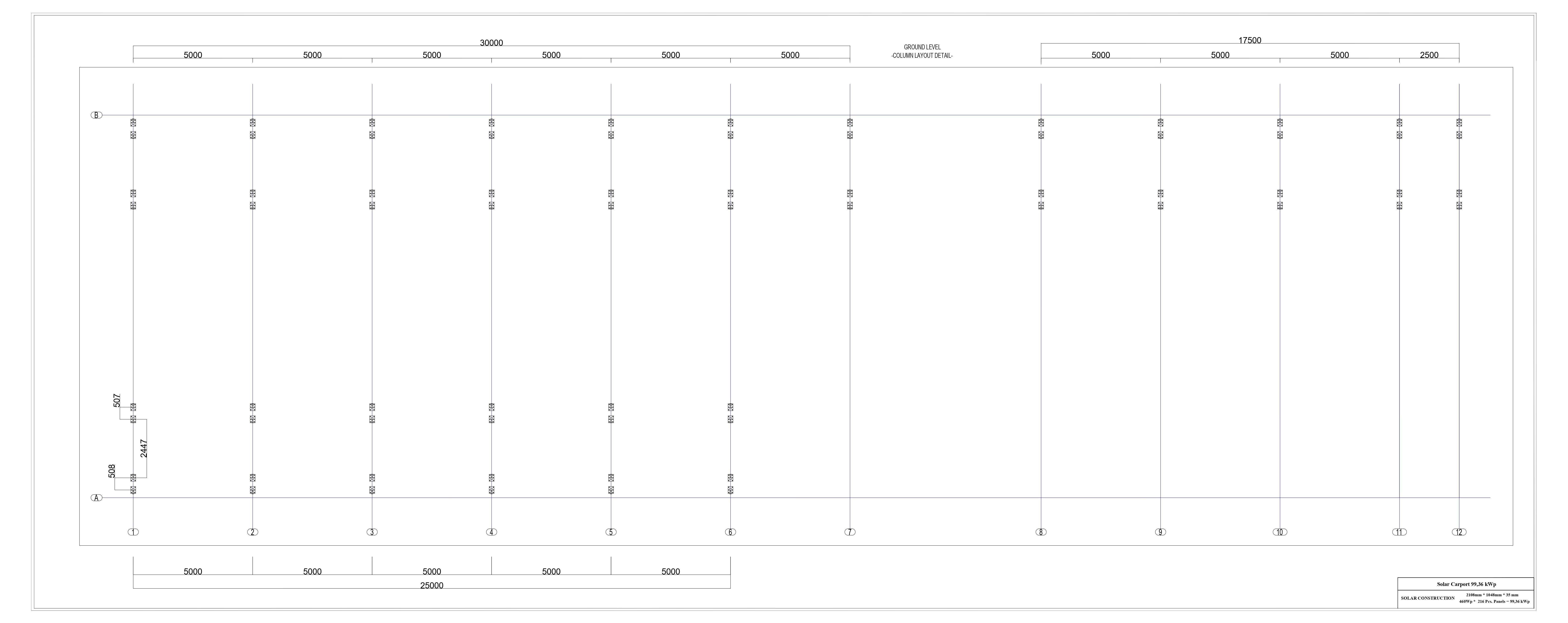

The system consists of 11 axles and the distance between each axle is 5000 mm.

Horizantal angle of panel 10°

The closest distance of the panels to the floor 2726 mm.

Prepared With AutoCAD Version 2021
